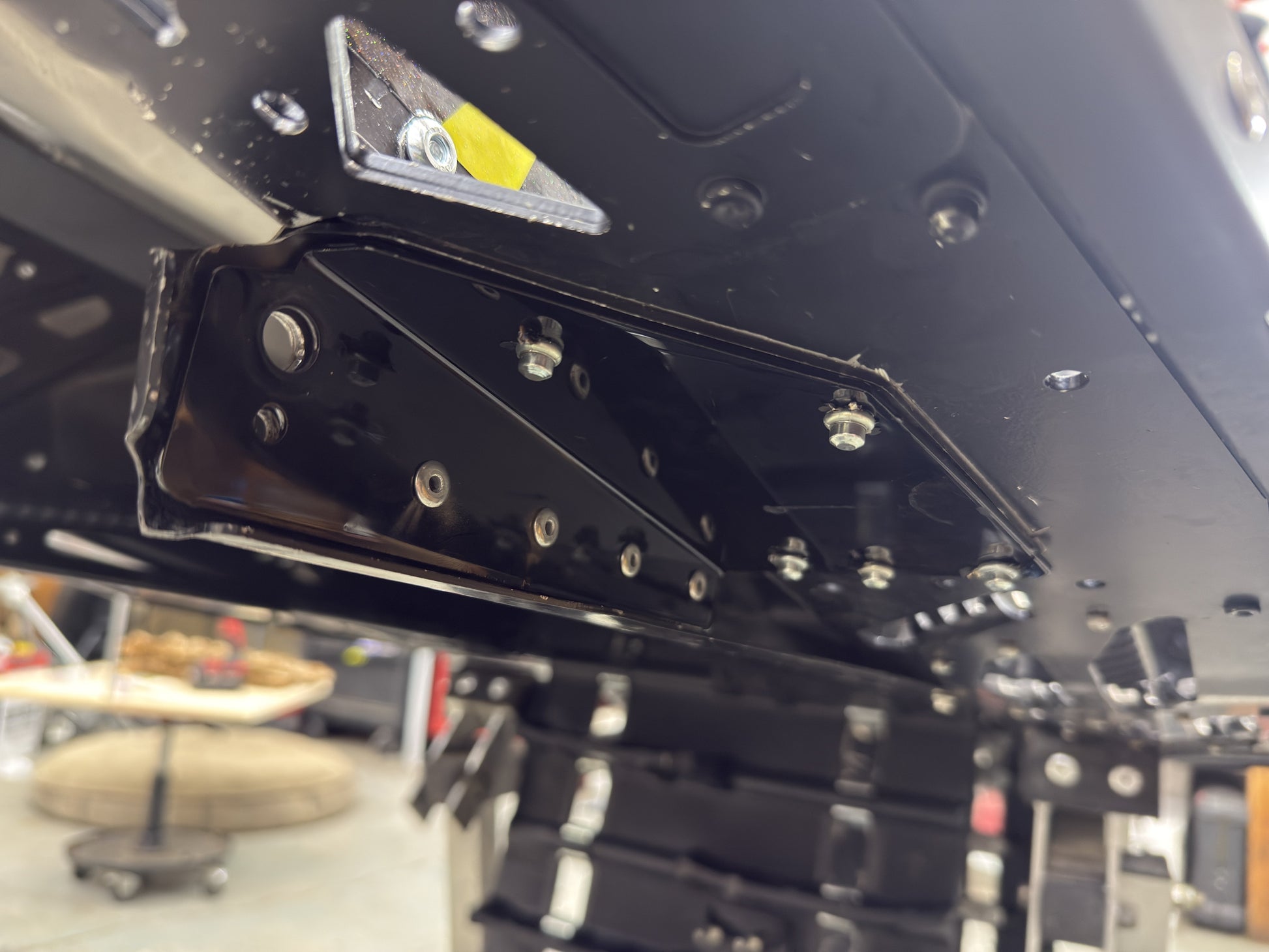

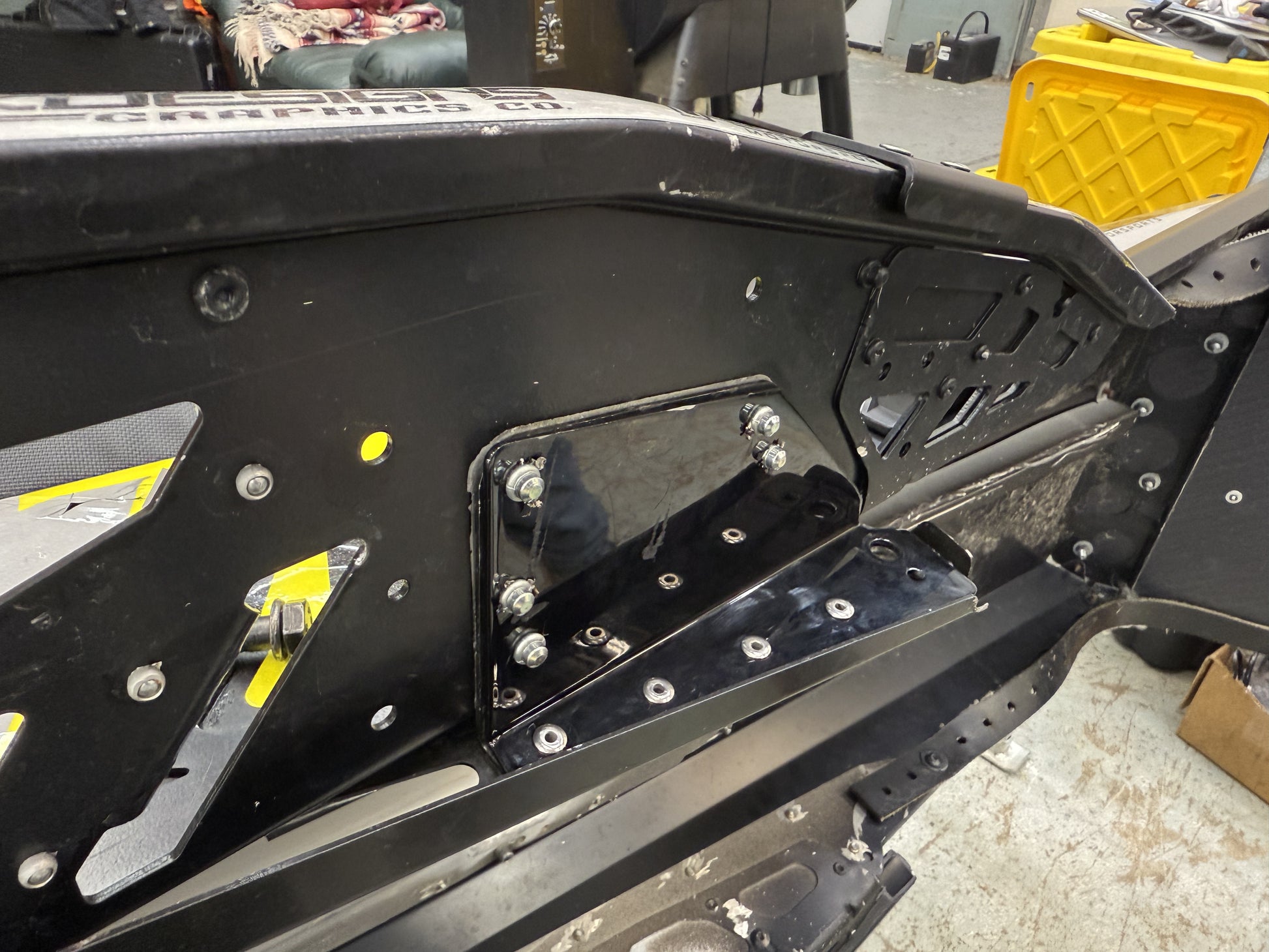

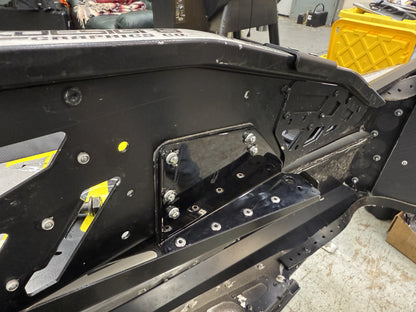

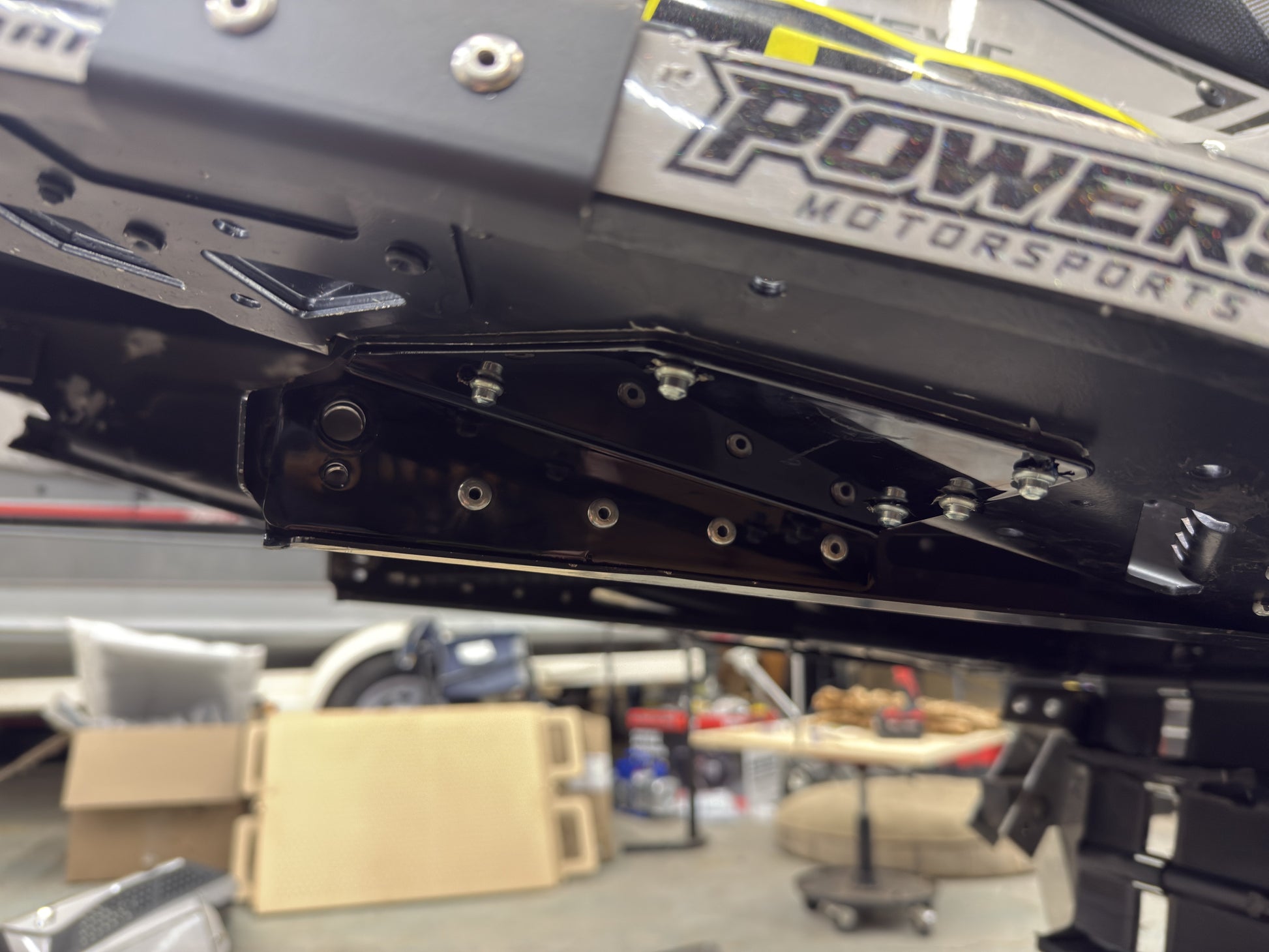

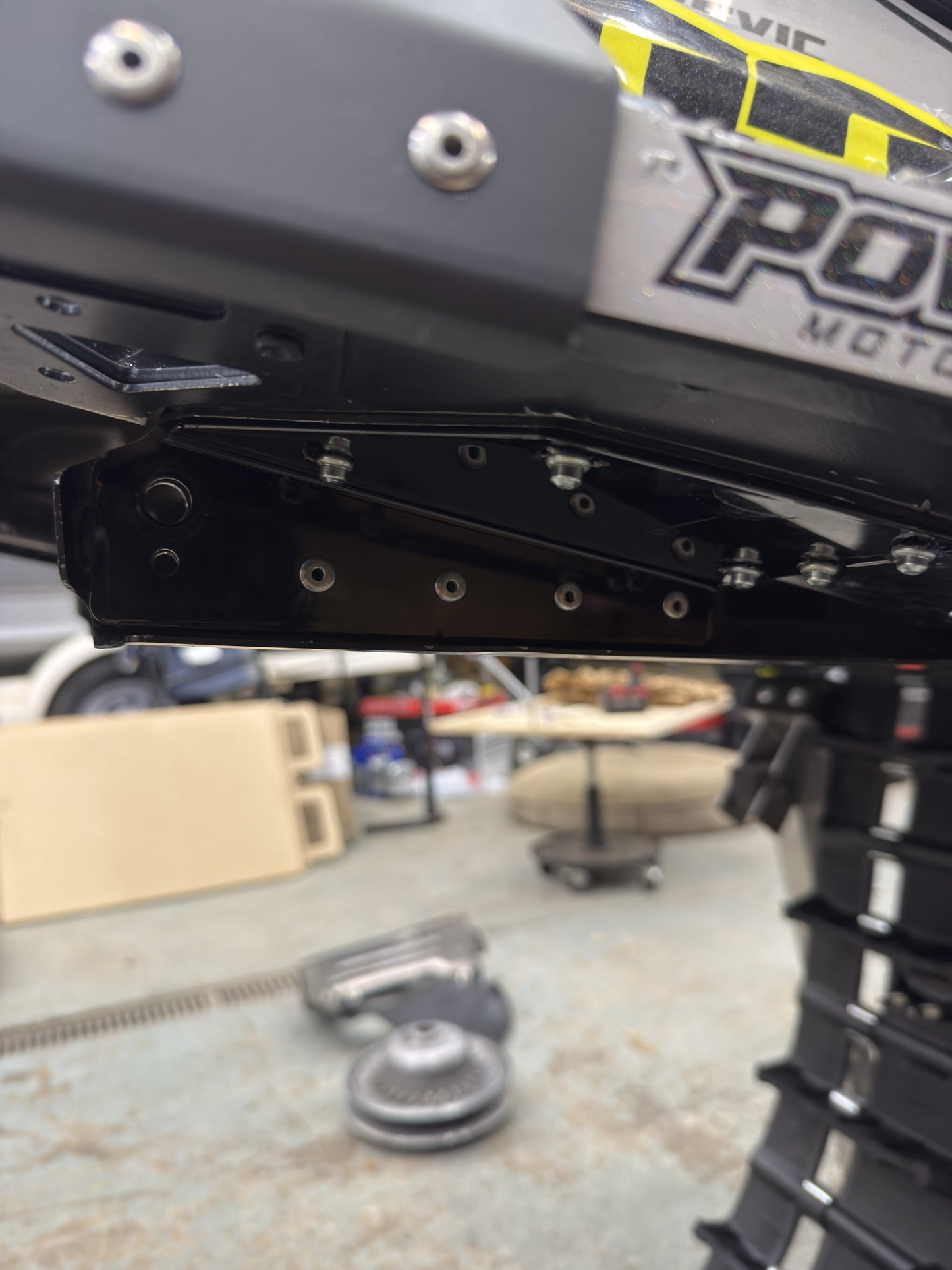

Save your skid bolt mounts from catostrophic failure! We saw failures in the skid bolt hangers between 9-11 hrs on the chassis, even with constant bolt checks. Our new brace is designed to fit perfectly in place and stiffen up the hanger. This brace is meant to be riveted in, and is made from mild steel. This brace is powdercoated to help with corrosion and looks.
Why does this damage happen? When you step on your running boards, they flex down, causing the suspension mount to bow in. When you ride your sled on track, the constant pressure changes from the body weight on the running boards make them bow up and down constantly, flexing the skid mount more and more. Over time the metal begins to crack and rip, until your skid completly rips out. By pairing this brace with our running board brace, you nearly eliminate all of this flex allowing for extended life of your skid hangers. after breaking the mounts on 2 sleds under 10 hours, we added this brace to some new hangers and never had another issue. we do NOT recommend you add this brace to an already cracked one, we advise youi start freesh and replace the hanger first.
Fits 19-26 Skidoo 600RS
Made from laser cut Mild Steel
Gloss Black powdercoat to match tunnel
Includes install rivets
You can use your origional skid bolt!
drilling and or welding required to install

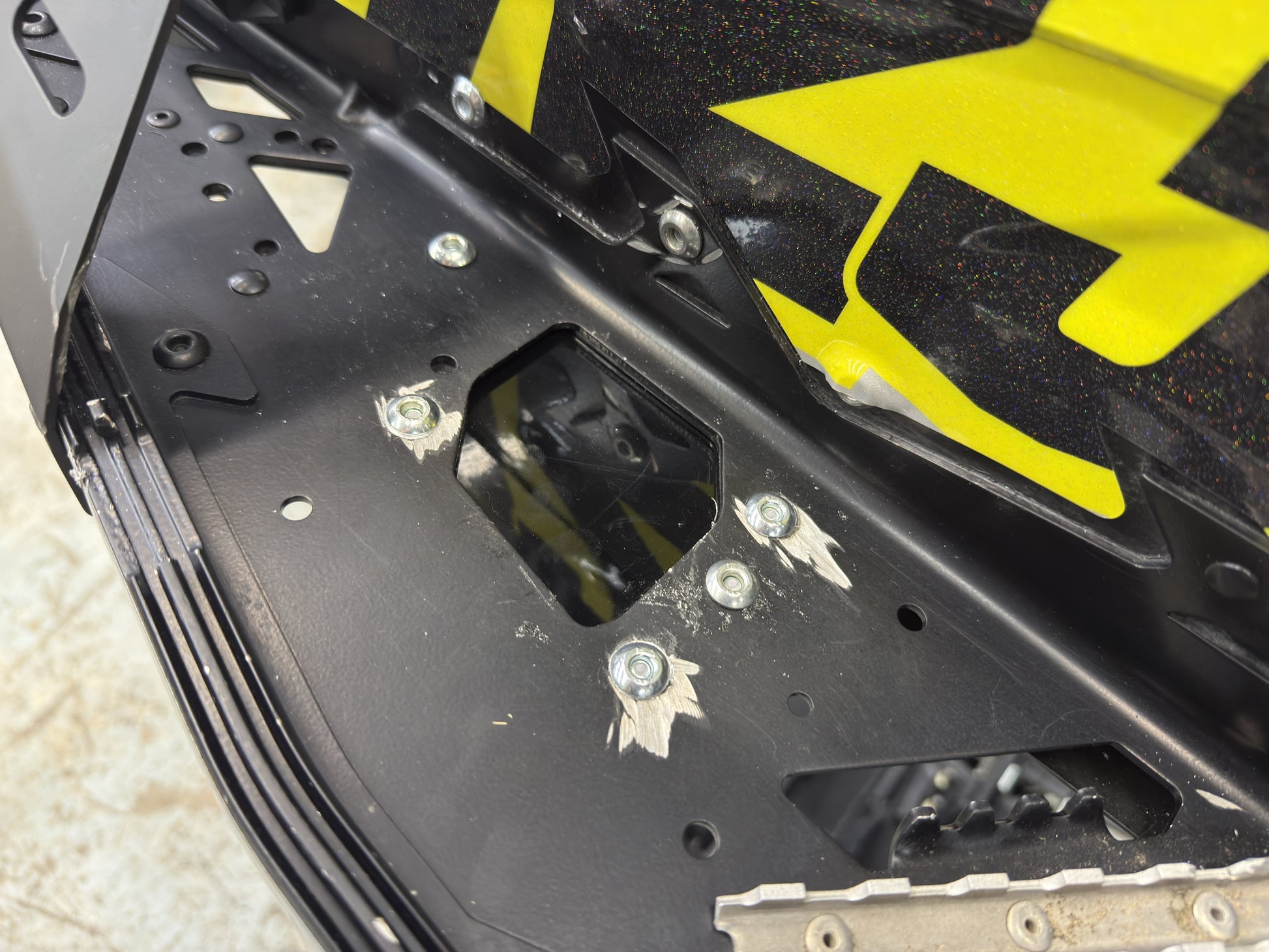

Must grind out upper rivets holding factory mount in to make room, reinstall factory rivets after brace installation
